Fraying loader silo. Compactor

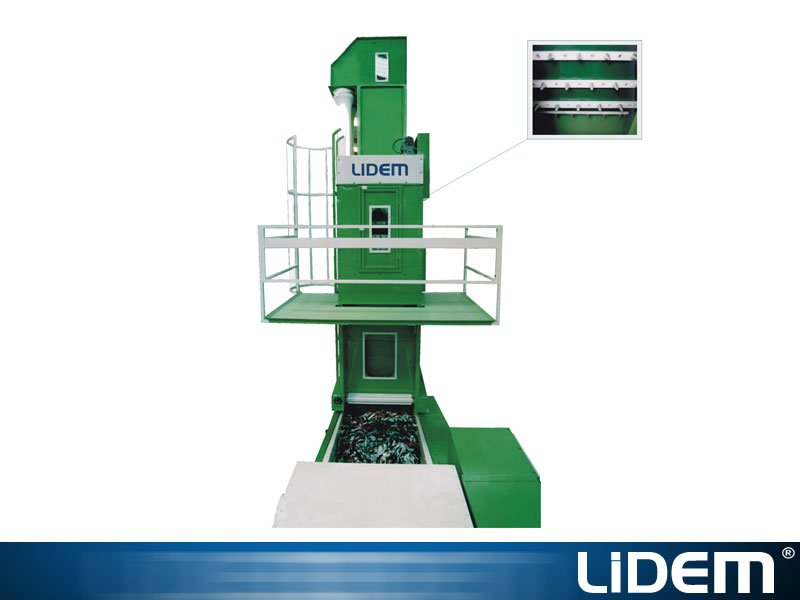

Silo fraying machine loader for feeding and dosing of fraying machines or “devils”.

Features of Silo Charger. COMPACTOR

Loading machine for continuous and regular storage, mixing and feeding of shredding machines for the production of embossing and recycling of textile materials.

Large production capacity

The system allows significant autonomy and production due to the machine’s high accumulation capacity and regular loading to the fraying machine.

Continuous and regular feeding.

The system performs continuous and regular feeding and good mixing of textile waste crushing.

Autonomy and automation in production lines

The loader silo has an electronic system of self-regulation of loading and unloading according to the needs of the production line of which it is a part.

Operating process

The loading silo is composed of a vertical silo, a horizontal silo, a discharger and a matter compactor that regulates the amount of matter we wish to load.

Feeding is carried out by pneumatic transport from storage and mixing systems. The matter is deposited in the vertical silo (1st silo), where the air is decompressed.

Then the matter passes to the horizontal silo (2nd silo), where a conveyor belt located at the bottom of the silo brings the material to the discharger.

The discharger is provided with a conveyor belt of considerable size and high resistance tines that discharge the matter to the compactor.

The compactor–doser regulates the thickness of the matter and deposits the load on the table of the fraying machine.

Applications

The loading–dosing silo is suitable for working with all types of fraying machines in the processes of recycling, reuse, processing and processing of regenerated or recycled fibres of Natural fibres (cotton, jute, flax, hemp, esparto, sisal, wool) non-woven synthetic fibres (nylon, polyester, acrylic) (wadding, felt, punched, thermofixed).

Models

LIDEM offers various models and versions of the dosing loader depending on the type of fraying machine to be fed. The loader silos feature various proper working widths of up to 2,000 millimetres and accumulation capacities ranging from 5.6 to 12 m3

ACCESSORIES. Transport fan

Systems of various capacities for driving and transporting materials through pipes to subsequent production processes.

The permanent barrier of Z-shaped Magnets

Systems for removing metal elements installed in the transport pipes prevent the insertion of objects and metal particles in the systems and subsequent production processes.
